Fuel Cell System F405:
-
Dimensions: 3636mm (30.5mm-30.5mm mounting hole spacing)
-
Package dimensions: 6464*35mm
-
Input voltage: 2S-8S Lipo
-
Product net weight: 8.5g
-
Package weight: 45g
-
CPU: STM32F405RET6
-
IMU: ICM42688
-
OSD: AT7456E
-
Barometer: Integrated
-
Blackbox: 16M
-
BEC: 5V/4A
-
BEC: 12V/3A
-
Firmware version: HAKRC F405V2
-
Receiver: Frsky/Futaba/Flysky/TBS Crossfire/DSMX:DSM2 receiver

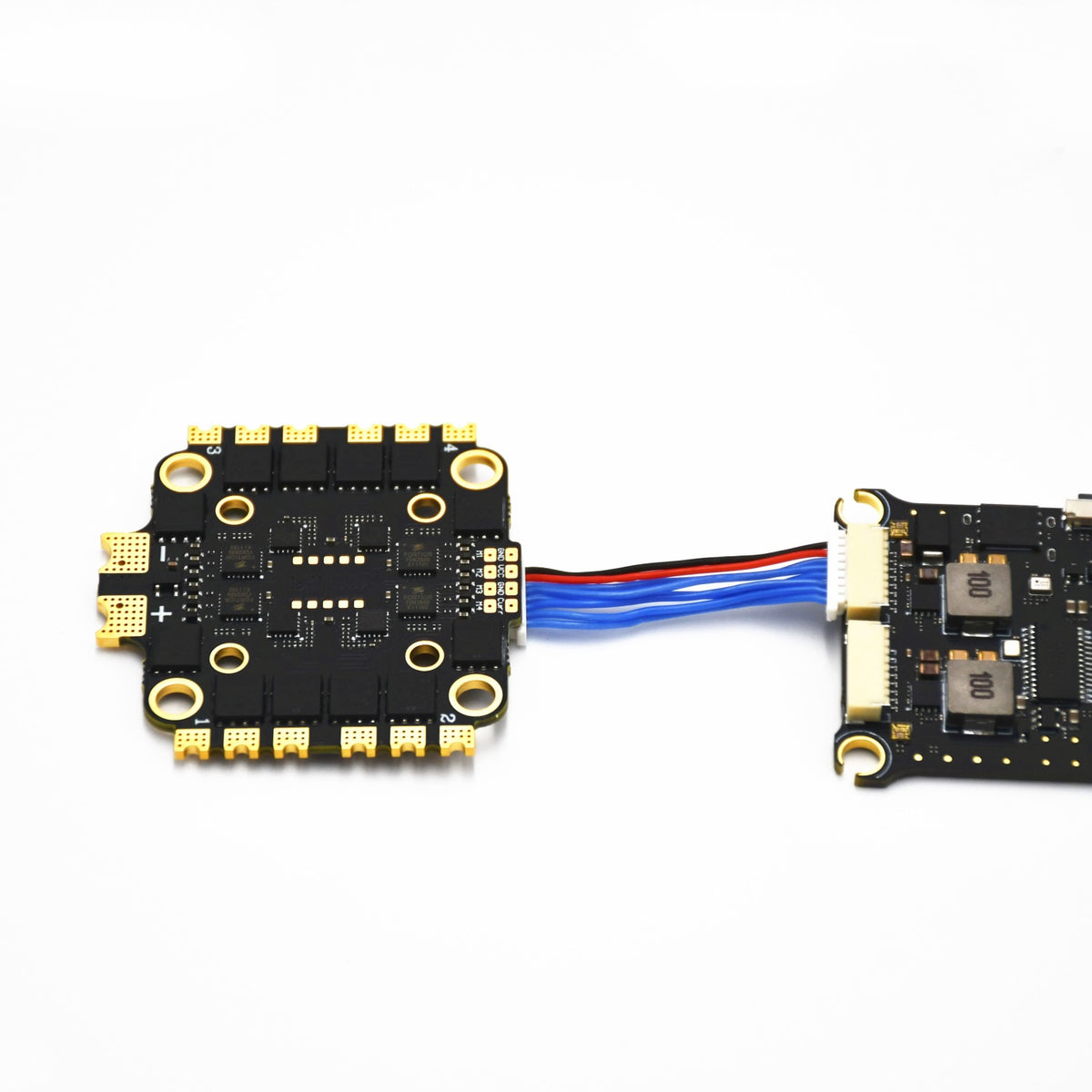

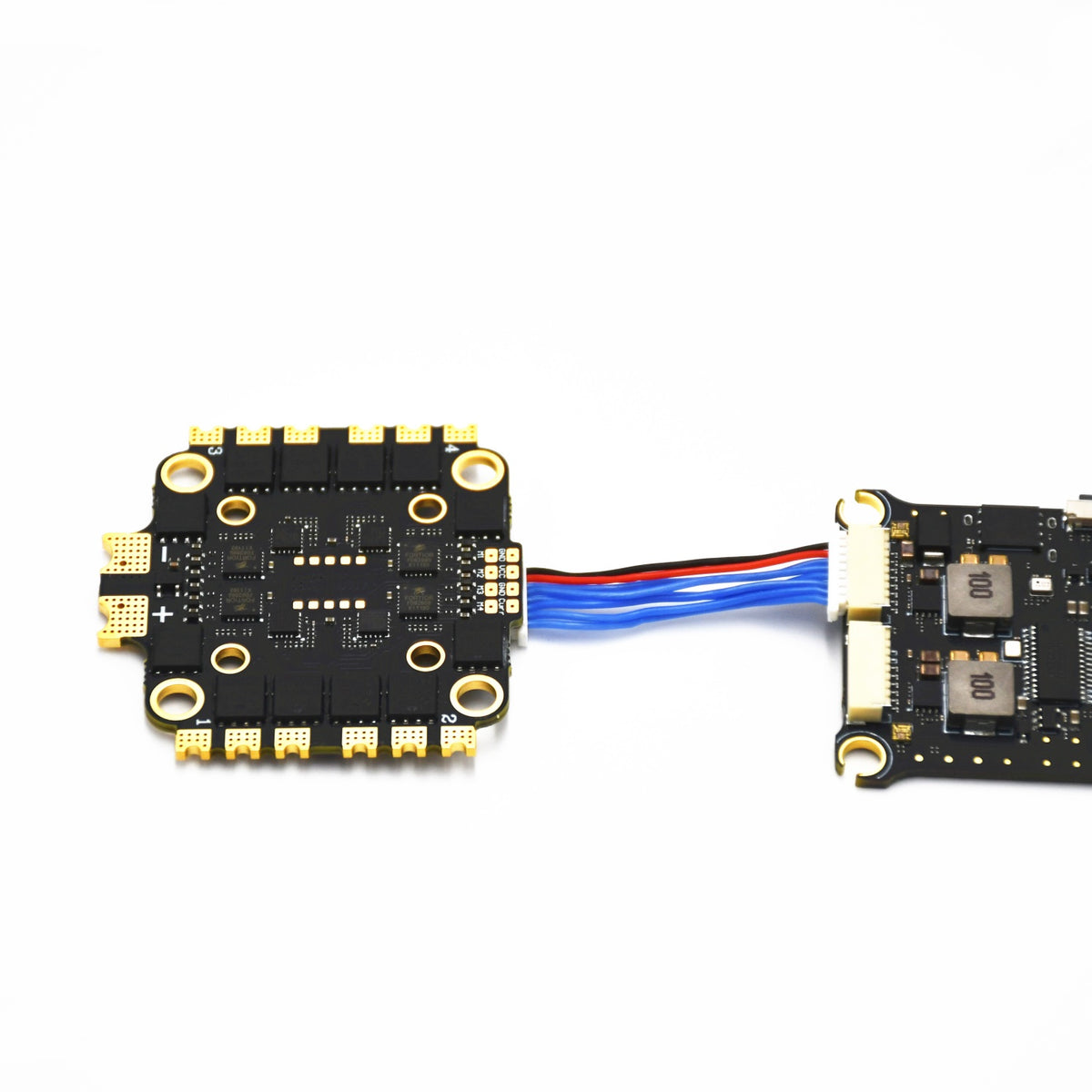

F50A Specifications:
- Size:38.5*41mm(30.5mm-30.5mm mounting hole spacing)
- Package Size:64*64*35mm
- Product Net Weight:12.5g
- Package Weight:51.5g
- Input Voltage:2S-6S Lipo
- Current Ratio:160
- Continuous Current:50A
- Peak Current:60A
- ESC Firmware:GH30-Rev.16.7-Multi
- Protocol Support:PWM, 0neshot125, 0neshot42.Multishot, Dshot150, Dshot300.
- Dshot600
- High Quality Hardware: EMF8BB21F16
- EMF8BB21F16G main control chip, Japan imported MOS, 3-in-1 1C driver FD62880 driver, imported high-quality Murata capacitors, the application of high-end resin plug-hole PCB production process, the pads are metallized edges, so that you can avoid the use of the pads off; 3 ounces of copper thickness, 6 layers of the board greatly reduces the heat, higher efficiency.
- Hardware: PWM, Damped Light
- Hardware PWM drive motor, low noise, smoother throttle response; Damped Light technology, regenerative braking function, make the motor deceleration more sensitive and effective, more accurate control; active flow technology, let the battery recycle power to extend the duration of the voyage.
